8. Properties of Curves

a. Vector Functions, Position, Velocity and Plots

1. Vector Functions: Position and Plots

In the previous chapter, we used parametric curves to define planar curves in \(\mathbb{R}^2\) and space curves in \(\mathbb{R}^{3}\). These are examples of vector functions.

A vector function is a function whose values are vectors.
In \(\mathbb{R}^2\), a vector function has the form   \(\vec{f}(t)=\langle f_1(t),\,f_2(t)\rangle\).
In \(\mathbb{R}^{3}\), a vector function has the form   \(\vec{f}(t)=\langle f_1(t),\,f_2(t),\,f_3(t)\rangle\).

Throughout this chapter, we will write general formulas for \(3\) dimensions; the \(2\) dimensional case, used in many examples, is obtained by dropping one component.

If we think of the resulting vectors as having their tails located at the origin, then the tips trace out a parametric curve. If we regard the parameter as time, then we regard the vector function as the position vector: \[ \vec{r}(t)=(x(t),y(t),z(t)) \] of a particle. A plot of a parametric curve or position vector, is a plot of the points \(\vec{r}(t)\) for some range of \(t\)'s.

There are three examples we will look at repeatedly throughout this chapter: a circle, a helix and a twisted cubic.

A circle may also be placed in \(3\)-dimensional space. For example, the circle of radius \(3\) centered at \((1,4,2)\) in the plane \(y=4\) (which is parallel to the \(xz\)-plane), may be parametrized as: \[ (x,y,z)=(1+3\cos\theta,4,2+3\sin\theta) \]

A helix (half of a DNA molecule) looks like a spring or slinky. If the axis is the along the \(z\)-axis, then the \(x\) and \(y\) coordinates may be parametrized just like a circle, while the \(z\) coordinate increases linearly with the angle. Plot the helix: \[ \vec{r}(\theta)=(4\cos\theta,4\sin\theta,3\theta) \qquad \text{for} \qquad 0 \le \theta \le 6\pi \] Find the slope of the helix.

A twisted cubic is a curve of the form \(\vec{r}(t)=(at,bt^2,ct^{3})\). Plot the twisted cubic: \[ \vec{r}(t)=\left(t,t^2,\dfrac{2}{3}t^{3}\right) \qquad \text{for} \qquad -2 \le t \le 2 \]

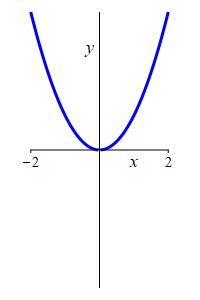

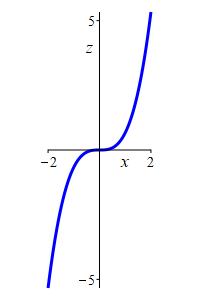

Here are \(3\) plots of the twisted cubic. From the \(z\)-axis, it looks like a quadratic. From the \(y\)-axis, it looks like a cubic. From the \(x\)-axis, it looks like a cusp. (But there is really no sharp point.) You can rotate any of these plots with your mouse.

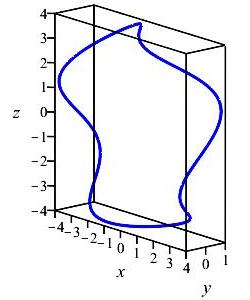

\(a)\qquad \vec{r}(t)=(4\cos t,\sin(4t),4\sin t)\)

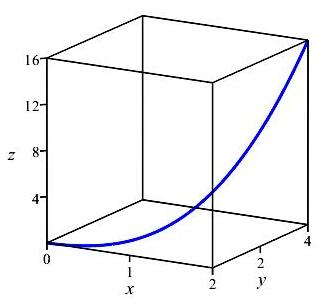

\(b)\qquad \vec{r}(t)=(t,t^2,t^4)\)

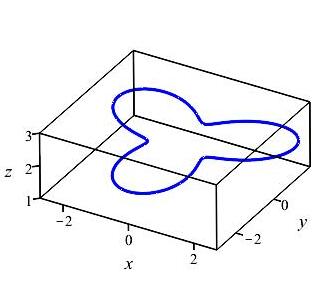

\(c)\qquad \vec{r}(t)=\left((2+\sin(3t))\cos t,(2+\sin(3t))\sin t,2\right)\)

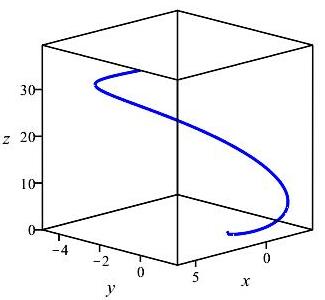

\(d)\qquad \vec{r}(t)=(t\cos t,t\sin t,t^2)\)
